DZH-120L
Hanyoo

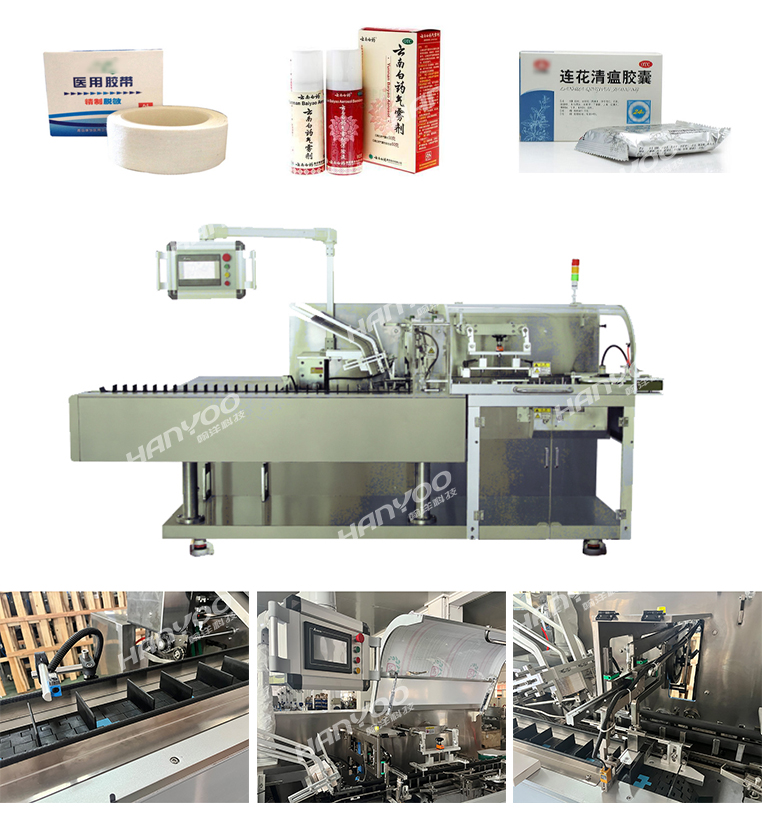

The DZH-120 horizontal automatic cartoning machine is a high-tech integrated product that combines mechanical, electrical, pneumatic, and optical technologies. It is suitable for automatically cartoning blister-formed capsules, tablets, blister boards with aluminum-plastic packaging, and similar items. Its working process includes the conveyance of medicine boards or items (multiple boards at a time, adjustable), the conveyance of drug leaflets (with automatic folding up to 4 folds), automatic forming and conveying of paper boxes, simultaneous insertion of medicine boards and folded leaflets into the paper boxes, and automatic completion of tasks such as batch printing and sealing the ends of the paper tongues. This machine can be connected in line with blister packaging machines and labeling machines to form a packaging production line (can be equipped with a hot melt glue machine).
| Item | DZH-120L | |
| Packing Speed | 30-120box/min | |
| Carton | Quality Requirement | 300-350g/m2 |
| Size Range(L x W x H) | （70-210）mm×（30-135）mm×（20-65）mm | |
| Leaflet | Quality Requirement | 60-80g/m2 |
| Open Size Range(L x W) | （90-300）mm×（90-200）mm | |
| Folded Size Range( L x W) | （90-200）mm×（20-40）mm | |
| Compressed Air | Working Pressure | 0.5-0.7mpa |
| Air Consumption | 120-160L/min | |
| Power Source | 380V 50HZ | |
| Main Motor Power | 1.5kw | |
| Dimension (L x W x H) | 3860mm×1200mm×1800mm | |
| Weight | About 1500kg | |
Nanjing Hanyoo pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and
after-service team. We are specialized in providing the professional packaging solution and packaging equipment for
pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical ma-
chinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are cap-
sule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator,
coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D
team, with a variety of high-precision processing equipment and quality testing team to provide product quality assur-
ance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE
certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and
exported to over than100 countries in the world such as, the United States, Russia, Germany,Spain, Malaysia,Thailand,
Brazil and other dozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
