| Modle: | |
|---|---|
| Quantity: | |

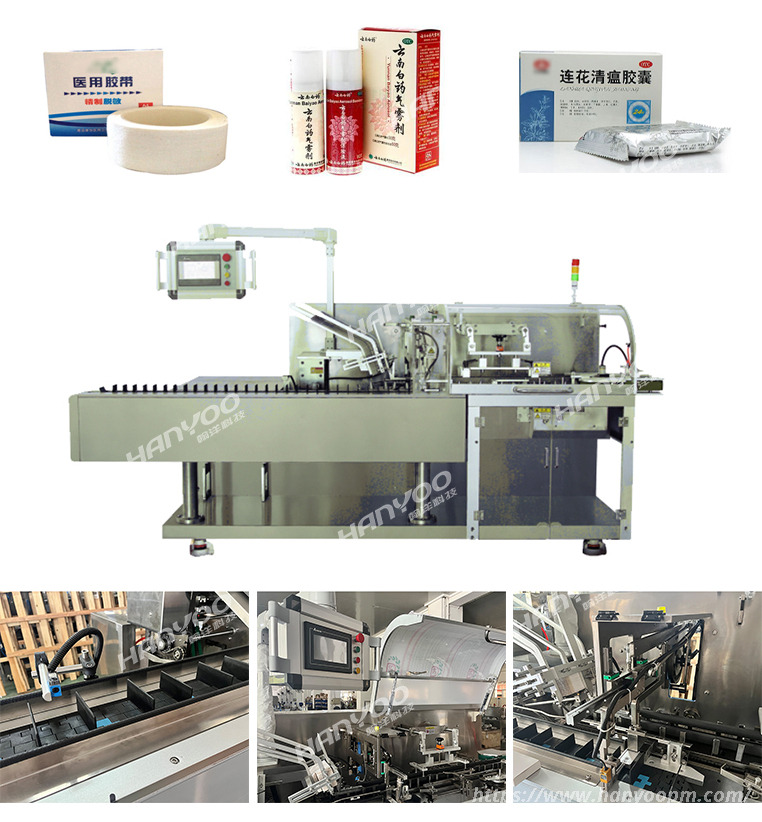

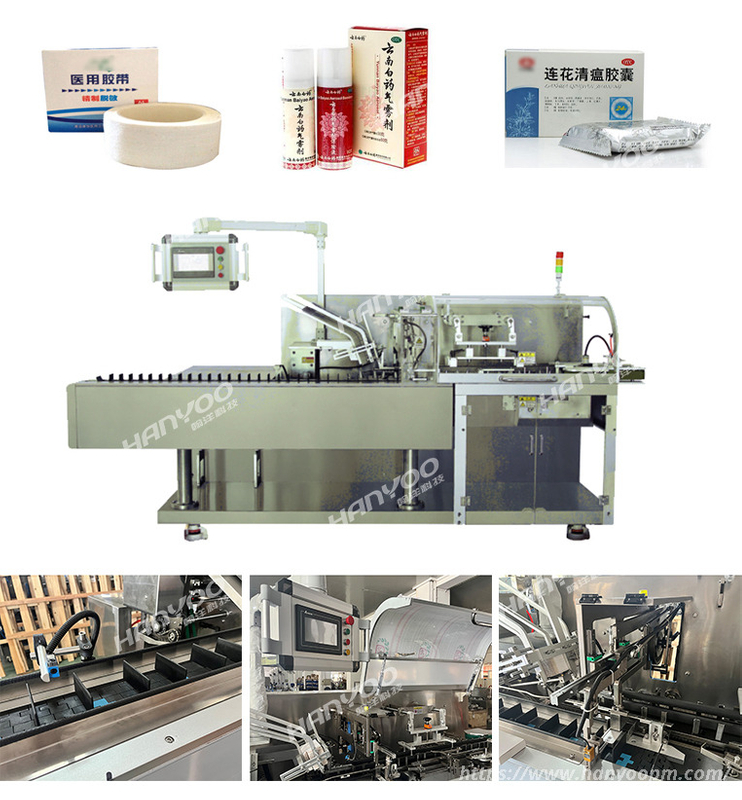

DZH-80
Hanyoo
PLC automatic control, variable frequency speed regulation, internationally renowned electrical components are used.
Automatically displays faults, box packing speed, and finished product count.
Automatically detects missing packaging or rejects for medicine boards (products) and instructions.
| MODEL | DZH-80 | |
| Packing Speed | 30-60 box/min | |
| Carton | Quality Requirement | 300-350g/m2 |
| Size Range(L x W x H) | L90-330mm，W50-210mm，H20-80mm | |
| Leaflet | Quality Requirement | 60-80g/m2 |
| Open Size Range(L x W) | 90-300mm；90-200mm | |
| Folded Size Range( L x W) | 90-200mm；20-40mm | |
| Compressed Air | Working Pressure | 0.5-0.7mpa |
| Air Consumption | 120-160L/min | |
| Power Source | 380/220V 50HZ | |
| Main motor power | 1.5kw | |
| Dimension (L x W x H) | 4150×1350×1800mm | |
| Weight | About 2000kg | |
Nanjing Hanyoo pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and
after-service team. We are specialized in providing the professional packaging solution and packaging equipment for
pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical ma-
chinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are cap-
sule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator,
coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D
team, with a variety of high-precision processing equipment and quality testing team to provide product quality assur-
ance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE
certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and
exported to over than100 countries in the world such as, the United States, Russia, Germany,Spain, Malaysia,Thailand,
Brazil and other dozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
PLC automatic control, variable frequency speed regulation, internationally renowned electrical components are used.
Automatically displays faults, box packing speed, and finished product count.
Automatically detects missing packaging or rejects for medicine boards (products) and instructions.
| MODEL | DZH-80 | |
| Packing Speed | 30-60 box/min | |
| Carton | Quality Requirement | 300-350g/m2 |
| Size Range(L x W x H) | L90-330mm，W50-210mm，H20-80mm | |
| Leaflet | Quality Requirement | 60-80g/m2 |
| Open Size Range(L x W) | 90-300mm；90-200mm | |
| Folded Size Range( L x W) | 90-200mm；20-40mm | |
| Compressed Air | Working Pressure | 0.5-0.7mpa |
| Air Consumption | 120-160L/min | |
| Power Source | 380/220V 50HZ | |
| Main motor power | 1.5kw | |
| Dimension (L x W x H) | 4150×1350×1800mm | |
| Weight | About 2000kg | |
Nanjing Hanyoo pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and
after-service team. We are specialized in providing the professional packaging solution and packaging equipment for
pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical ma-
chinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are cap-
sule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator,
coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D
team, with a variety of high-precision processing equipment and quality testing team to provide product quality assur-
ance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE
certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and
exported to over than100 countries in the world such as, the United States, Russia, Germany,Spain, Malaysia,Thailand,
Brazil and other dozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
