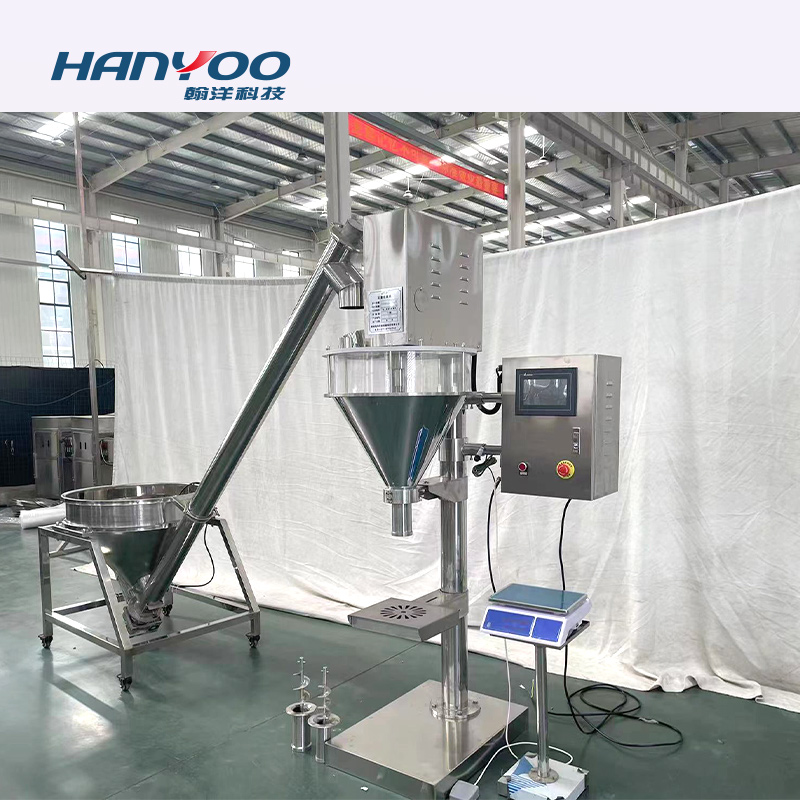

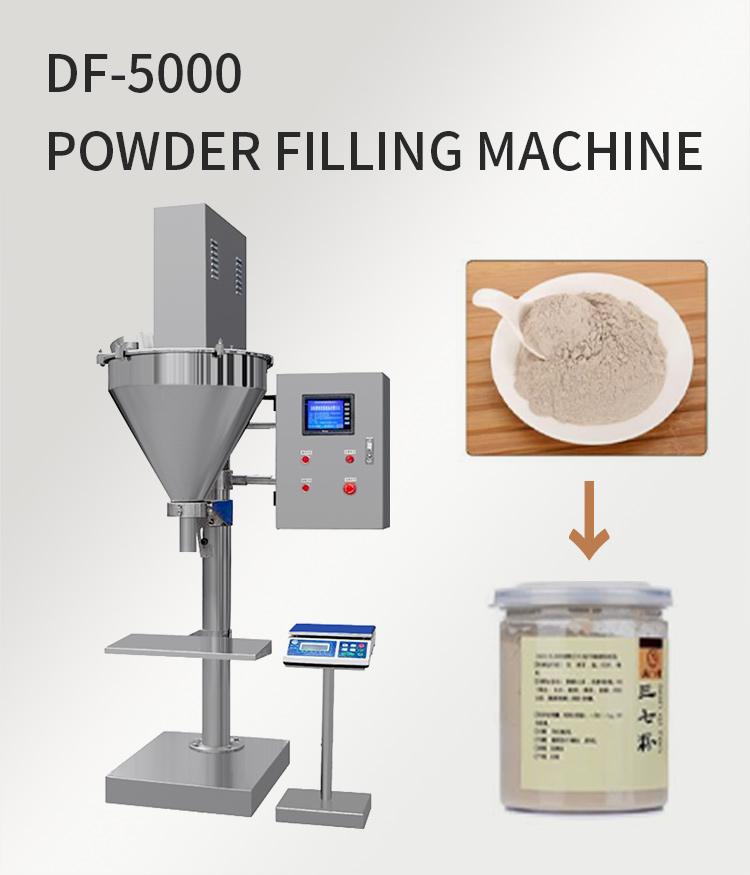

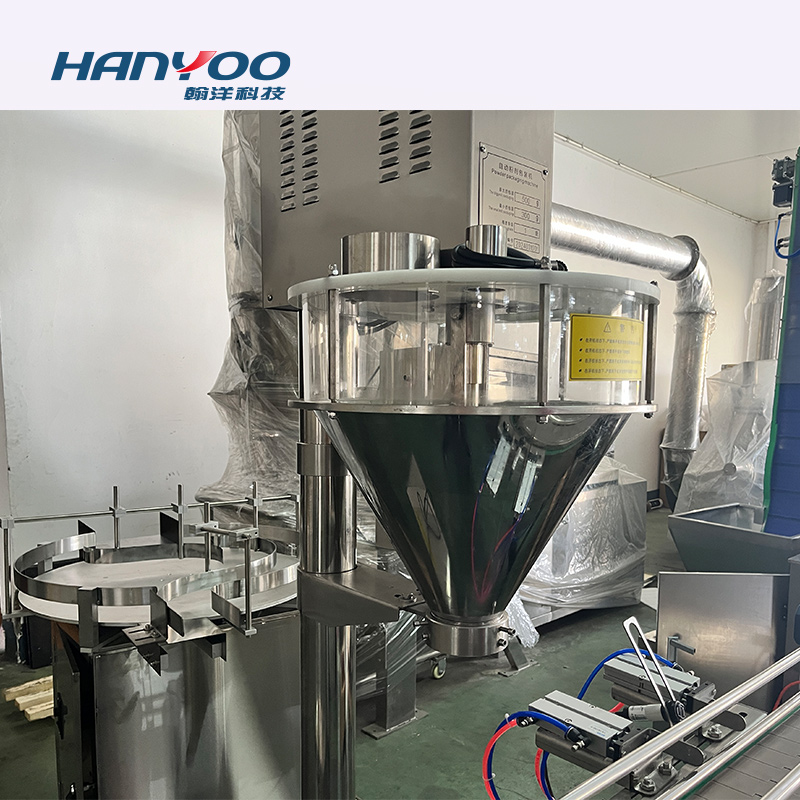

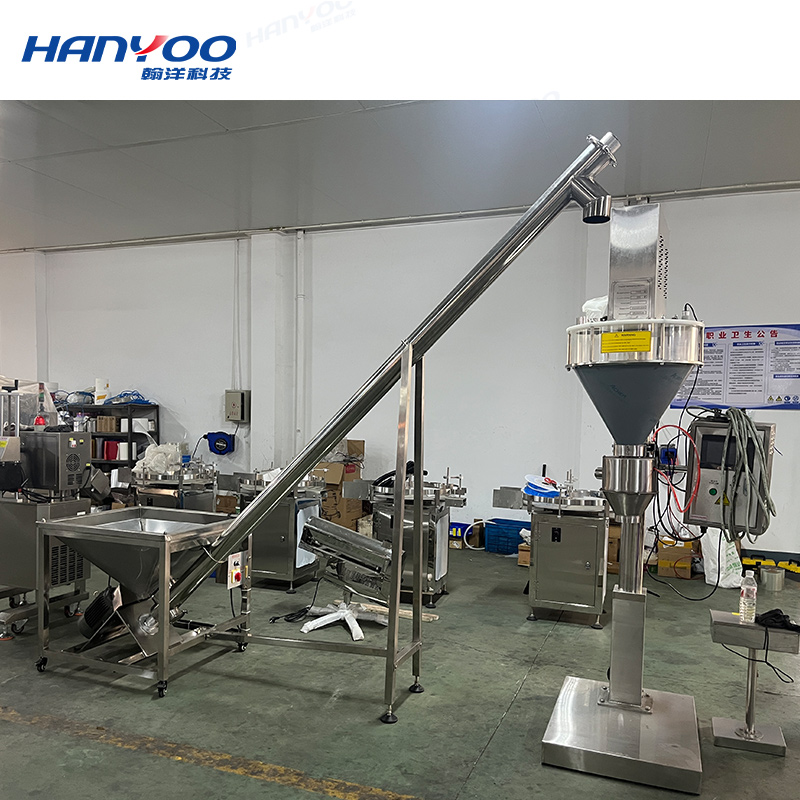

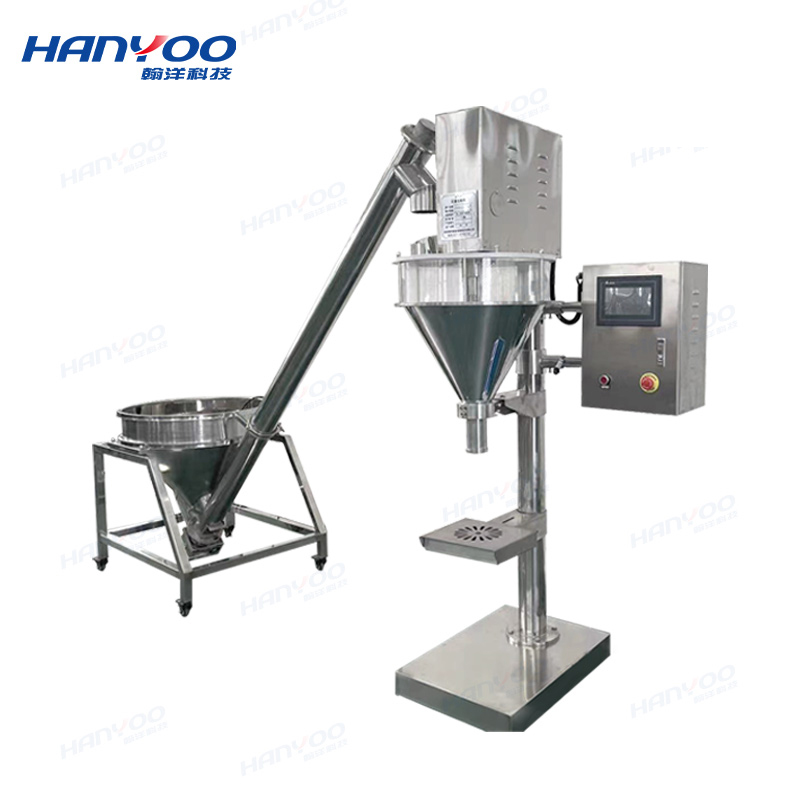

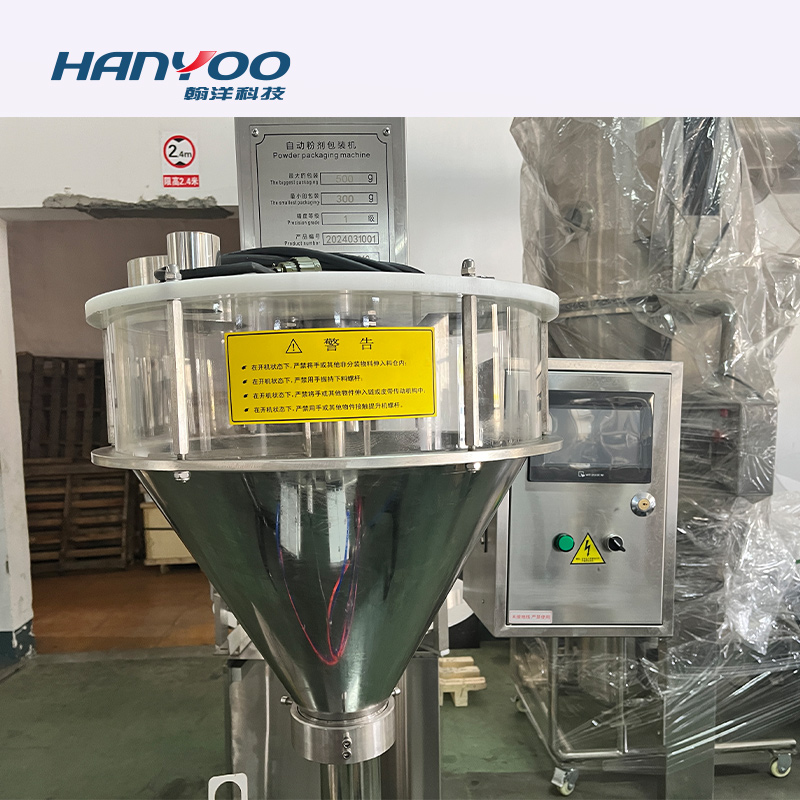

DF-5000 Powder Filling Machine
This packaging machine is suitable for quantitative packaging of powdered materials in industries such as pharmaceuticals, chemicals, food, and agricultural by-products, such as milk powder, starch, pesticides, veterinary drugs, premixes, additives, seasonings, feed, enzyme preparations, etc.
MACHINE FEATURES
1. The packaging machine integrates mechanical and electrical functions, and is controlled by a LCD touch screen PLC;
2. It has functions such as automatic measurement and filling, automatic adjustment of measurement errors, etc;
3. Fast speed: Adopting spiral cutting and light control technology;
4. High accuracy: Adopting a control principle that combines servo motor or stepper motor filling and electronic weighing feedback;
5. Wide packaging range: Within 30-5000g, the same equipment can be adjusted and replaced with different specifications of cutting screws through the weighing interface on the display screen;
6. Wide application range: It can be used for powder or powder particle mixed materials with certain fluidity;
7. Errors caused by changes in material density and material level can be automatically tracked and corrected;
8. Photoelectric induction cutting, only manual bagging is required, the bag opening is clean and easy to seal;
9. The parts in contact with the materials are made of 304 stainless steel material, which is easy to clean and prevents cross contamination.
Model | DF-5000 |
Filling Specifications | 30-5000g |
Filling Speed | 1000-3500 bag/h |
Filling Precision | ±1% |
Overall Dimensions | L×W×H (690×1060×2000)mm |
Power Supply · Power | AC380 50HZ·1500W |
| Weight | 250kg |
Jiangsu Hanyoo Pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and after-service team. We are specialized in providing the professional packaging solution and packaging equipment for pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical machinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are capsule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator, coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D team, with a variety of high-precision processing equipment and quality testing team to provide product quality assurance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to over than 100 countries in the world such as,the United States,Russia,Germany, Spain, Malaysia, Thailand, Brazil and other dozens of countries and regions, and we won good reputation and credibility.

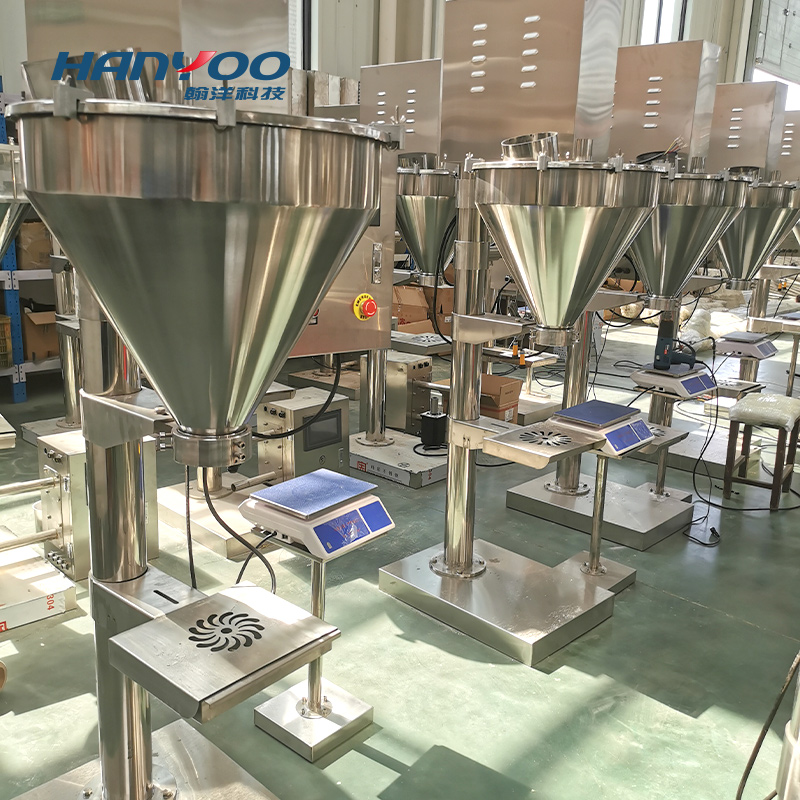

12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
