How to Choose GMP Rotary Tablet Press | Pharmaceutical Buying Guide

Rotary tablet press is the core compression equipment in all pharmaceutical solid preparation production lines, converting mixed powder and granules into uniform tablets, effervescent pills, chewable tablets and herbal tablets.

Different from single-punch tablet press with low output, rotary tablet press adopts multi-station turret structure with dozens of punch-die sets running continuously, realizing mass stable production. For new pharmaceutical factories, CMO manufacturers and health supplement brands, improper model selection will lead to unstable tablet weight, unqualified hardness, frequent shutdown and failure to pass GMP cleanroom audit.

This buying guide sorts all key selection standards based on FDA and EU GMP requirements, helping buyers match the most suitable rotary tablet press without overspending.

1. Key Technical Parameters to Confirm Before Purchase

1.1Production Capacity & Number of Stations

Station quantity directly determines hourly output:

Lab small rotary press (17/27 stations): 10,000–40,000 tablets/h, for R&D small batch test

Medium production model (41/55 stations): 60,000–120,000 tablets/h, medium factory daily production

High-speed rotary press (75/79 stations): 150,000–250,000 tablets/h, large-scale mass production

Advice: Reserve 20% surplus capacity according to your future production expansion plan.

1.2 Compression Force & Pre-compression Function

Tablet hardness and friability depend on maximum compression force:

Standard model: 60–80kN, for common round tablets

High-pressure model: 100–120kN, for hard effervescent tablets, mineral supplement tablets

Pre-compression is a must-have configuration for sticky herbal powder; it exhausts air inside powder to avoid tablet splitting and lamination.

1.3 Material Contact Parts & GMP Material Standard

All parts touching pharmaceutical raw materials must be mirror-polished SUS316L stainless steel, not ordinary 304 steel.

Qualified rotary tablet press features: no dead corners, quick disassembly without tools, fully sealed feeding hopper, independent negative pressure dust collection system to prevent cross-contamination between batches.

1.4 GMP Compliance Design Standards You Cannot Ignore

Global pharmaceutical regulators (FDA, EMA) put forward strict requirements for tablet compression equipment:

Separated mechanical transmission area and product processing area, no oil dripping pollution risk

PLC touch screen with 21 CFR Part 11 data recording function, full production traceability

Quick-release turret, punch and die for fast cleaning validation

Closed compression chamber to block powder flying, meet Class D cleanroom use

Complete IQ/OQ/PQ certification documents for factory audit

1.5 Matching Auxiliary Equipment for Full Production Line

A complete tablet production flow is:

Pulverizer → V-type Mixer → Wet Granulator → Fluid Bed Dryer → Rotary Tablet Press → High Efficiency Coating Machine → Blister Packing Machine / Counting Bottling Line

When selecting rotary tablet press, confirm feeding matching: match vacuum feeder for lightweight fluffy powder to avoid bridging inside hopper.

1 Common Mistakes Buyers Make When Selecting Tablet Press

Only pursue high speed, ignore compression force, resulting in soft fragile tablets

Choose 304 stainless steel model to save cost, failing GMP inspection

Skip pre-compression device, facing frequent tablet splitting

Ignore cleaning difficulty, leading to long batch switching downtime

Purchase without matching punch & die molds, extra long delivery cycle

Neglect after-sales spare parts supply, long shutdown waiting for accessories

Conclusion

The best rotary tablet press is not the highest-speed or cheapest model, but the one matching your raw material property, daily output and cleanroom audit standard. Our technical team can provide free workshop layout design and machine trial test with your powder samples. Contact us to get customized quotation and parameter scheme.

FAQ (Rotary Tablet Press Buying Questions)

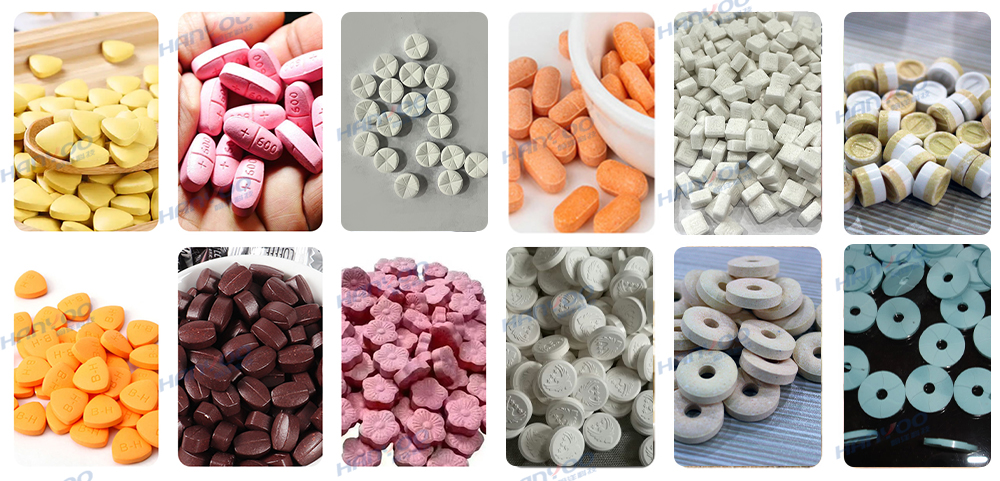

What tablet shapes can rotary tablet press produce?

Round, oval, capsule-shaped, special irregular scored tablets; custom punch dies are acceptable.

Can the machine adjust tablet weight automatically?

Yes, equipped with real-time weight feedback correction system, automatically adjust filling depth to control weight tolerance within ±1.5%.

Is the rotary tablet press suitable for herbal sticky powder?

Choose model with double pre-compression + forced feeder, effectively solve sticking and capping issues.

What’s the warranty period of rotary tablet press?

1-year whole machine warranty, lifetime cost-price supply of punches, dies and other wearing parts, overseas installation training available.

Can I test my powder on your machine before order?

We support free sample compression test, send your raw material samples to our factory for trial production.
