Flat blister machines are the best-selling universal model for pharmaceuticals & health supplements. Featuring static flat forming plates (different from roller blister machines), they deliver high cost performance with compact footprint, ideal for mixed multi-spec small & medium batch production.
1. Integrated Machine Structure
6 fully automatic integrated units: film unwinding, constant-temperature flat forming, heat sealing, product feeding, punching & waste recycling, operated by only one worker.
Unwinding unit: synchronous PVC & aluminum foil feeding with auto tension correction to eliminate film offset and wrinkles.
Flat forming unit: vacuum molding on flat molds delivers flatter blisters than roller type machines.
Feeding station: optional vibration feeding, manual feeding or automatic capsule sorting modules.
Heat sealing unit: segmented constant-temperature sealing for consistent airtight performance.
Servo punching unit: precise cutting for smooth blister edges without burrs.
Automatic waste film winding keeps workshops clean and tidy.
2. Applicable Industries
Tablet & capsule pharmaceutical plants, health supplement factories, tea packing, vape pods and mini daily chemical blister packaging.

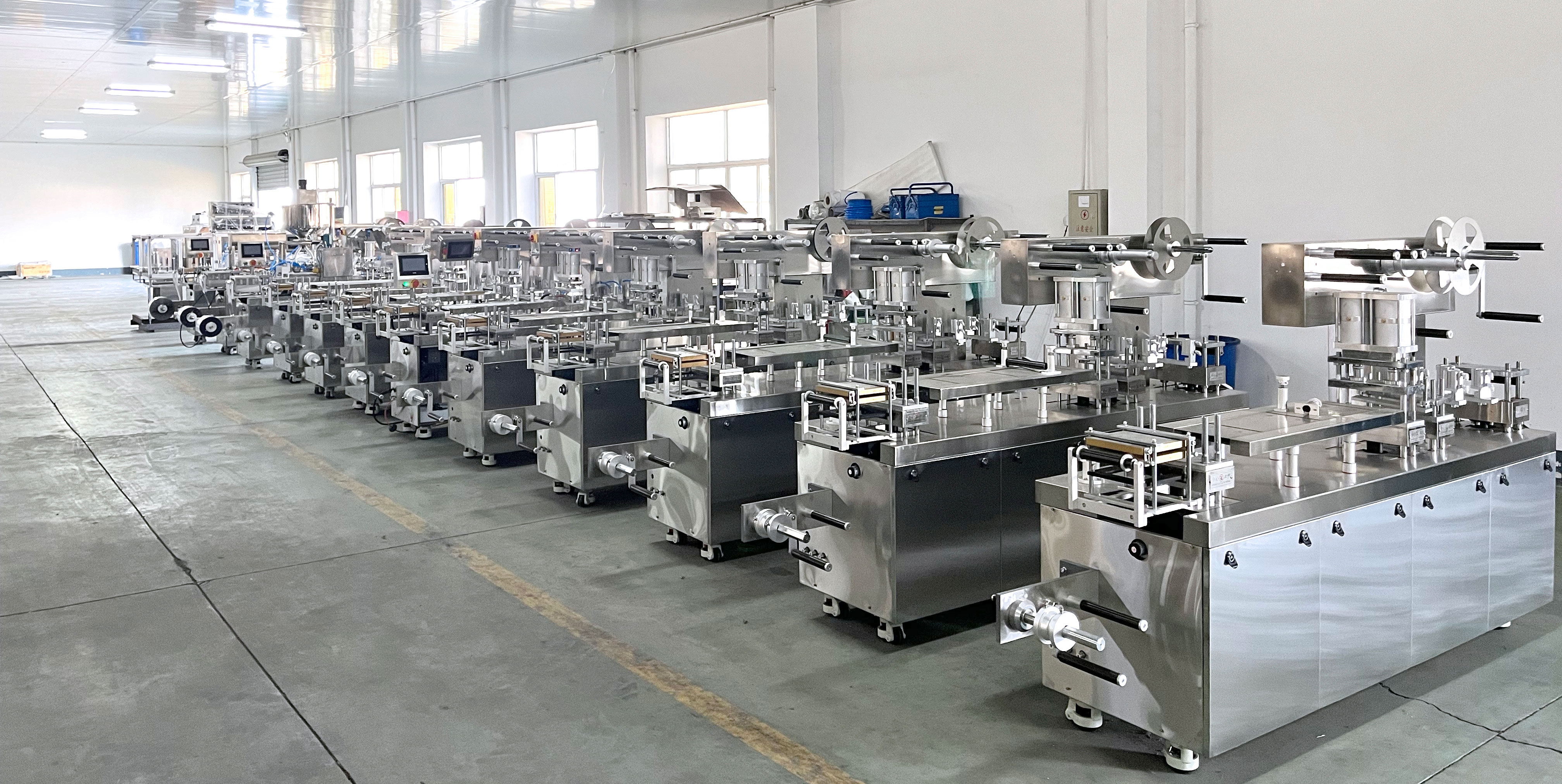

3. Standard Hanyoo Flat Machine Models
DPP-120 Mini Flat Machine: Lab & sample trial, daily output 10,000–50,000 blister sheets.
DPP-170 Medium Flat Machine: Main model for small & medium factories, daily output 80,000–150,000 sheets.
DPP-270/360 Wide Flat Machine: Large-scale mass production, daily output 200,000–300,000 sheets.
Custom wider & longer sizes available, with optional double aluminum conversion modules to switch packaging processes on one machine.
