GD-8-200K
Hanyoo
Rapid change of the specifications of the bag, bag width can be automatically adjusted by one button.
Single shaft and the CAM design: packing speed faster; more stable operation ; maintenance easier and reduce defective rate.
Modular heating, temperature control more accurate, heating fault have alarm prompt.
| MODEL | GD-8-200K GD-8-260K GD-8-320K GD-8-350K GD-8-400K | ||||
| Packing Material | 3-side,four edge-sealing bag,self-reiance bag,handbag,spout bags,zipper bag.compound bag,etc | ||||
| Packaging | GD-8-200K：Suitable for bag width W:80-220mm;H:≤380mmGD-8-260K：Suitable for bag width W:140-260mm;H:≤450mmGD-8-320K：Suitable for bag width W:180-320mm;H:≤450mmGD-8-350K：Suitable for bag width W:200-350mm;;H:≤450mmGD-8-400K：Suitable for bag width W:260-400mm/;H:≤550mm | ||||
| Filling Range | ≤1KG | ||||
| Fillingrange | ≤1000g | ≤2000g | ≤3000g | ≤3000g | ≤5000g |
| Design speed | 60-70bag/min | ≤50bag/min | ≤40bag/min | ≤40bag/min | ≤30bag/min |
| PackagingSpeed | 10-60bag/min(The speed is determined by the product itself and thefilling volume) | ||||
| Measurement Average Accuracy | ±1 | ||||
| Total Power | 3.5KW | ||||
| Work Flow | giving bag→coding-opening filling 1 →filling 2→auxiliary→exhaust 一heat sealing→.forming and output product | ||||
| Dimensions | 1780×1420×1480mm(L×W×H) | ||||
| ApplicableScope | 1.Block material:bean curd cake,fish,eggs,candy,red jujube,cereal,chocolate, biscuit,peanut,etc | ||||
| 2.Granular type:crystal monosodium glutamate,granular drug,capsule,seeds, chemicals,sugar,chicken essence,melon seeds,nut,pesticide,fertilizer | |||||
| 3.Powder type:milk powder,glucose,monosodium glutamate,seasoning, washing powder,chemical materialsfine white sugar,pesticide,fertilizer,etc | |||||
| 4.Liquid/paste type:detergent,rice wine,soy sauce,rice vinegar,fruit juice, beverage,tomato sauce,peanut butter,jam,chili sauce,bean paste | |||||
| 5.Class of pickles,pickled cabbage,kimchi,pickled cabbage,radish,etc | |||||
| 6.Other bagging materials | |||||

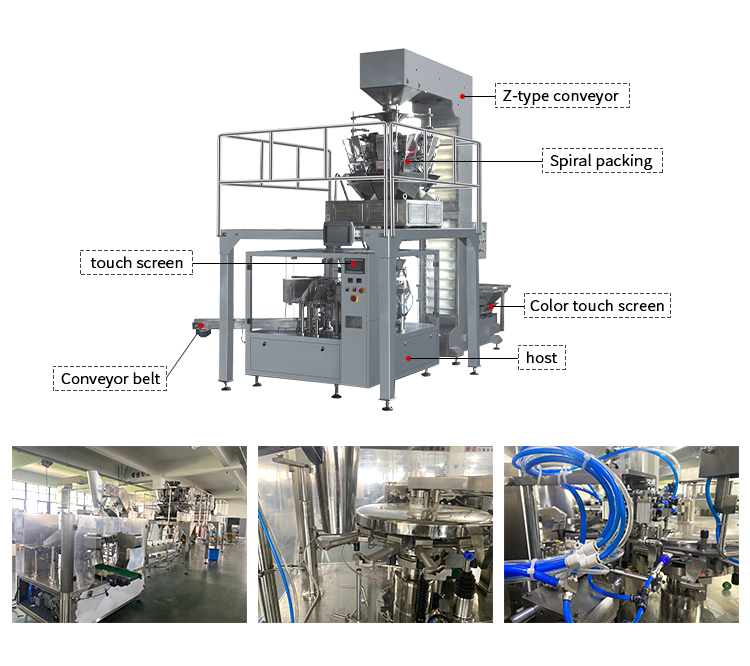

| MainStandardParts | 1.Code printer 2.PLC control system 3.Bag opening device 4.Vibration device 5.Cylinder 6.Electromagnetic valve 7.Temperature controller8.Vacuum pump 9.Inverter 10.Output system | ||||
Nanjing Hanyoo pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and
after-service team. We are specialized in providing the professional packaging solution and packaging equipment for
pharmaceutical, medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical ma-
chinery experience can help you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are cap-
sule filling machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator,
coating machine, mixing machine etc. We have over hundred of inventions patented technology, with leading R&D
team, with a variety of high-precision processing equipment and quality testing team to provide product quality assur-
ance. The company passed ISO9001:2016quality management certification, the products passed through the EU CE
certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and
exported to over than100 countries in the world such as, the United States, Russia, Germany,Spain, Malaysia,Thailand,
Brazil and other dozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
