BJC-D
HANYOO

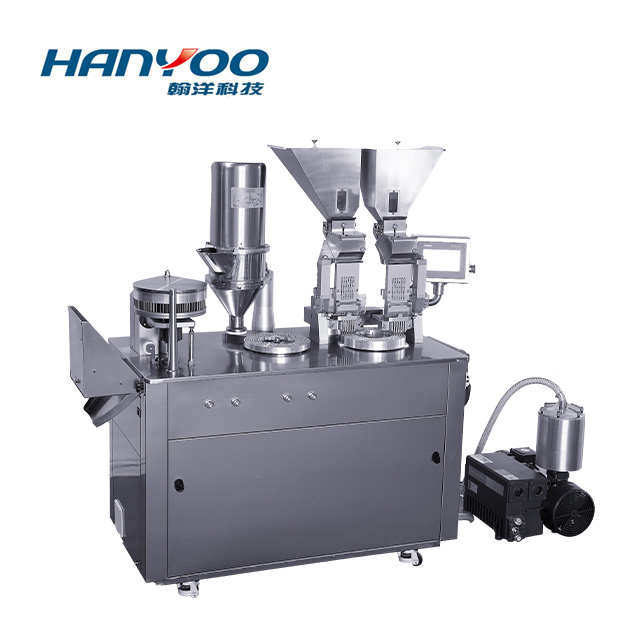

BJC-D Smei Automatic Capsule Filling Machine
1. The semi-automatic capsule filling machine is a product developed by our company to address the shortcomings of existing semi-automatic capsule filling machine products and propose corresponding performance indicators.

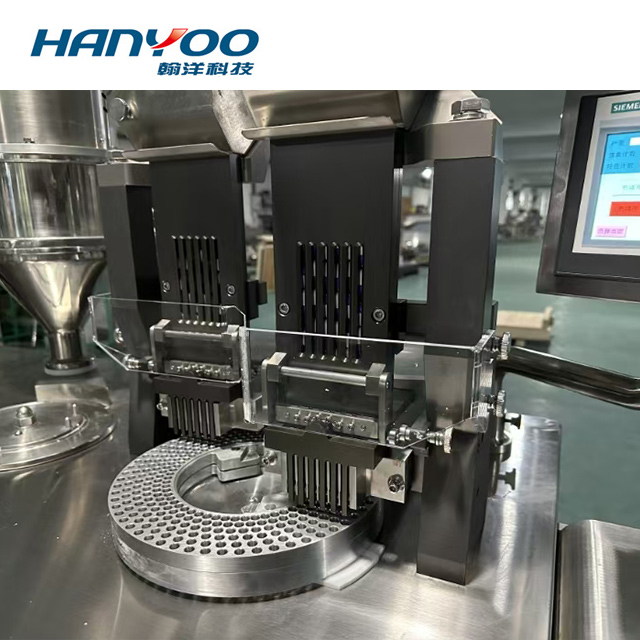

2.The whole machine adopts programmable control system, touch screen panel operation, stepless frequency conversion debugging, and pneumatic joint control.
3.The equipment adopts the double head fully automatic capsule filling machine's capsule removal method in design. In terms of capsule removal speed, mold replacement, filling degree, maintenance, etc., it has made significant progress compared to the old-fashioned semi-automatic capsule filling machine equipment. The equipment has become faster, more convenient, simpler, and more stable. In terms of bag locking, we adopt pneumatic control and automated bag locking methods to save manual time.

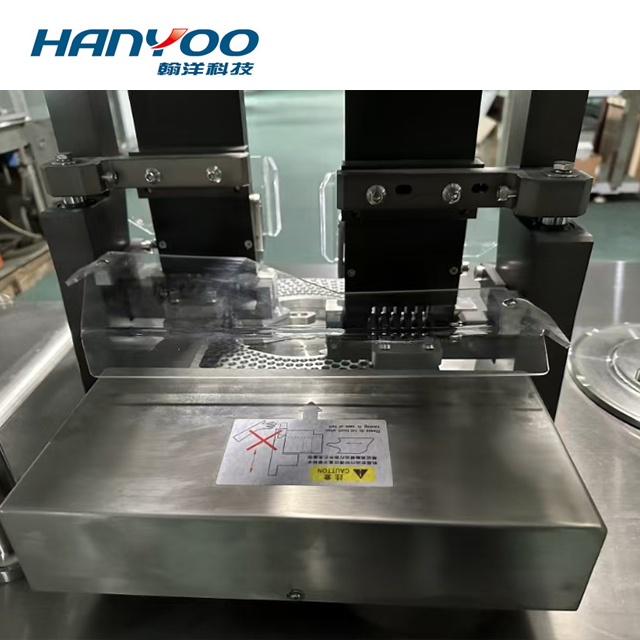

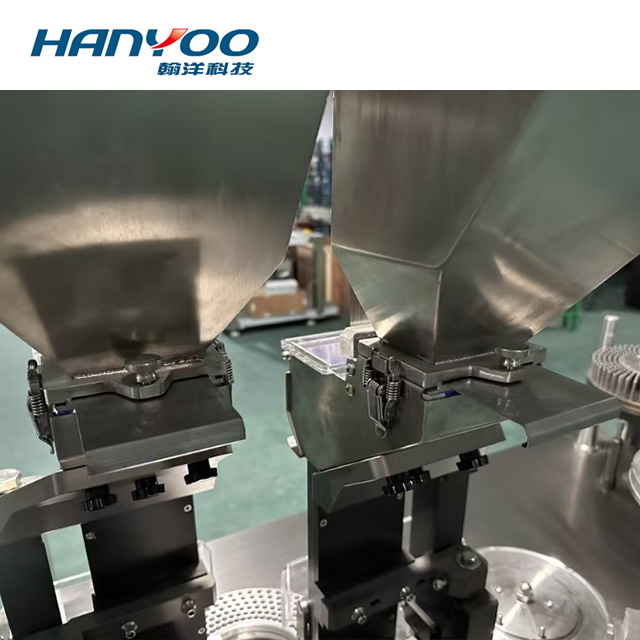

4.In terms of human-machine aspects, our company has installed a safety door device at the bag removal station. When the safety door is not closed, the equipment is in a stationary state and cannot operate. At the powder filling station, a visual window has been added to observe the degree of powder filling. A barrier plate is installed above the lock bag station to prevent accidents when the lock bag flips over. A capsule tray placement rack has been added to the right side of the device for ease of use.
5.The body and workbench are made of stainless steel, which is corrosion-resistant and oxidation resistant.
6.The device can be filled with different types of capsules, used for hard capsule filling of drugs, health products such as powders, granules, and microspheres.
.
Model | BJC-D |
Output Capacity | 25000-40000 pcs/h |
Suitable capsule size | 00L、00#、0L#、0#、1#、2#、3#、4#、 |
Filling type | Pellet, powder without moisture, granules |
Voltage | Customer Made |
Powder | 4KW |
Weight | 450KG |
tablet Press Machine Weight(KG) | 1790×700×1720 mm |
Jiangsu Hanyoo Pharmatech Co., Ltd.is a high technology enterprise which has strong research, production, sales and after-
service team. We are specialized in providing the professional packaging solution and packaging equipment for pharmaceutical,
medical instruments, cosmetics and electronics industrials. Our over 20 years pharmaceutical machinery experience can help
you more on building your intelligent factory.
Hanyoo factory is located in Nanjing city, which occupied more than 12,000 square meters. The main products are capsule filling
machine, tablet press machine, blister packing machines, capsule/tablet counting machine, granulator, coating machine, mixing
machine etc. We have over hundred of inventions patented technology, with leading R&D team, with a variety of high-precision
processing equipment and quality testing team to provide product quality assurance. The products passed through the EU CE
certification. Now, with the efforts of all staff in Hanyoo, our products sold to more than 30 provinces in China and exported to
over than 100 countries in the world such as,the United States,Russia,Germany, Spain, Malaysia, Thailand, Brazil and other
ozens of countries and regions, and we won good reputation and credibility.
12000 meter workshop
The factory has sufficient stock supply
24-hour technical support and after-sales service
Professional maintenance and provision of various accessories
